Key Features

Make in India Icon

Designed & Manufactured in India with ~60% DVA (Domestic Value Addition)

Battery Backup Icon

Battery Backup | RFID

High Speed Charging Icon

High Speed Charging with 120V module

Safety Protections Icon

Advanced Safety Protections including provision for Smoke & Tilt Sensors

High Efficiency Icon

High Efficiency >92%

Temperature Sensor Icon

Onboard Temperature Sensor

Upgrade Power Rating Icon

Upgrade Power Rating by stacking additional modules

Ethernet Wifi 4G Icon

Ethernet | Wifi | 4G

OCPPv1.6J Icon

OCPPv1.6J

Cable Management Icon

Type 6 (IEC62196-6)




Safety features

Make in India Icon

Overvoltage Protection

Battery Backup Icon

Relay Welding Protection

High Speed Charging Icon

Over Current Protection

Safety Protections Icon

Onboard GFCI Protection

High Efficiency Icon

Varistor Fault Detection

Temperature Sensor Icon

Type B Earth Leakage Protection

Upgrade Power Rating Icon

Surge Protection upto 8kV

Ethernet Wifi 4G Icon

Over Temperature Protection

Technical Specifications

Characteristic LEVDC Charger – Single Gun LEVDC Charger – Dual Gun
Power Rated Power 3 kW 6 kW 6 kW 12 kW
Input voltage 200-265Vac, 1 phase (L- N-PE), 50±1Hz 346-412Vac, 3 Phase (L1,L2,L3,N,PE), 50±1Hz 346 - 412Vac, 3 phase (L1,L2,L3,N,PE), 50±1Hz
Number of Output 1 2
Output Charging Outlet 1 x 3kW (IEC62196-6 Type 6) 1 x 6kW (IEC62196-6 Type 6) 1 x 6kW (IEC62196-6 Type 6) 2 x 6kW (IEC62196-6 Type 6)
DC Output Voltage 40-68Vdc
DC Output Current 50A per output 100A per output 50A per output 100A per output
Battery Backup Battery Backup for controlling unit > 60 mins
Efficiency ≥92%
Power Factor >0.95
Controls and
User Interface 		Display 4.3°HMI LCD Display Touchscreen (Faults / Charging status/ Supply/ Connectivity status)
LEDs LEDs for charging/fault modes
User Authentication RFID + OCPPv1.6
Environment Ambient emperature 0°C to 55°C
Storage Temperature -20°C to 85°C
Altitude <2000 Mtr
Humidity <95%, Non condensing
Communication External WiFi, LAN / 4G (with signal boosting Antenna), RS485, OCPPv1.6
Metering and Billing Class 1 Energy Metering
Charging Operation RFID Card / QR Code / Mobile CMS App (OCPPv1.6)
Protection/Safety Input/ Output protection Over/Under Voltage, Overload, Short Circuit, Current Leakage, Grounding, Surge protection, Relay Welding, Over Temperature
Mechanical Protection Enclosure Mechanical Strength IK-08, IP55 for Outdoor use, Flame Retardant Grade UL94 V-0, Anti-Theft Mounting Design, Safety Lock
Mounting Wall/ Stand Mount Wall / Pole Mount / Floor Mount (Anti-Theft Design)
Push Button Mushroom Push Button for Emergency Stop
Cooling Forced Air Cooling
Certification As per IEC 61851 / AIS 138 Part-1 / IS-17017

Related Products

Chargers your way, with BelectriQ

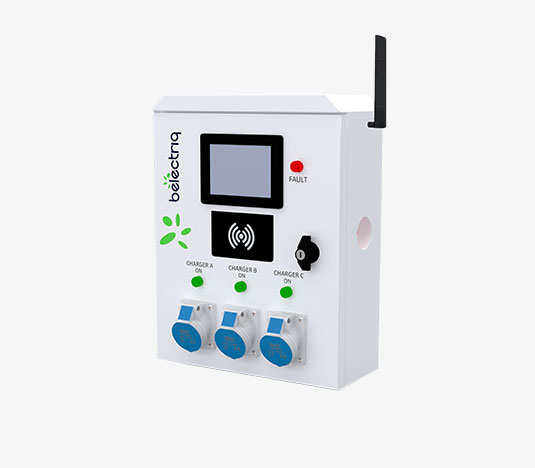

AC001 Charger
